Products > Motor Starting Resistors
TYPICAL RESISTANCE VALUES TOLERANCE ±10%
CONTINUOUS CURRENT RATINGS AT 2800C TEMPERATURE RISE
|
OHMS
|
0.5
|
0.6
|
0.75
|
1
|
1.3
|
1.7
|
2.2
|
2.8
|
3.5
|
4
|
5
|
6.5
|
9
|
13
|
16
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPS
|
28
|
24
|
20
|
16
|
16
|
14
|
11
|
11
|
9
|
9
|
8
|
6.5
|
5
|
3.8
|
3.2
|
|
Construction
|
High thermal capacity grooved ceramic former, Open type winding, Self locking robust terminals, Phosphorus bronze & adjustable bands.
|
|---|---|
|

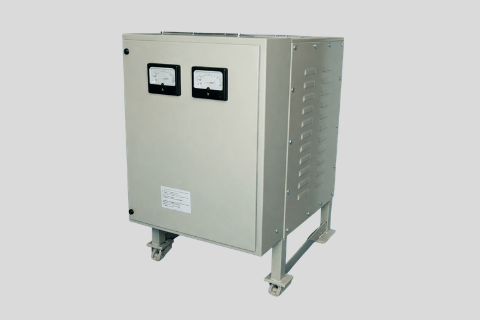

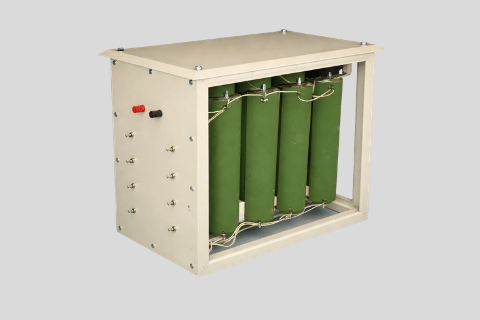

Load Bank
|
Assembly of Resistors mounted in aircooled enclosure with Switches and terminals.
|
|
"Heat Sink type" manufactured in a range of 5 watts to 250 watts. (* Non-standard valves also manufactured as per customers' requests.)
|
|
|

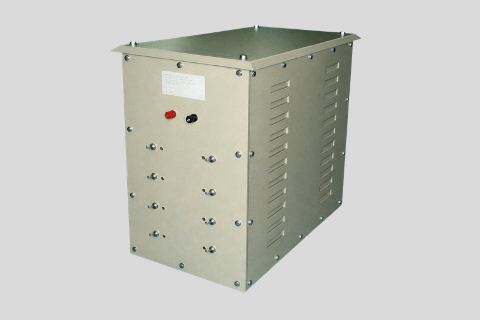

Battery Testing Load Bank (Battery Discharge Resistor Panel)
|
At 48-volt dc current rating, 300 amps down to 5 amps can be set, provided with toggle switches for selection of load with volt & amp meter with terminals. Cooling is provided by forced air indoor installation. Similar load banks are manufactured as per different ampere ratings.
|
“Rohms” Precision Wire Wound Resistors, Motor Starting Resistors, Potentiometers, Rheostats, Dynamic Braking Resistors, Aluminum Housing Resistors, Load Banks, and S. S. Grid Resistance.
