Products > “ROHMS” Wire Wound Resistors
The ‘ROHMS’ RESISTORS are manufactured after research and planned development, modern manufacturing techniques, and the use of high-standard materials and quality control. Proper testing, perfect design, and process under the control of qualified and technically well-experienced hands.

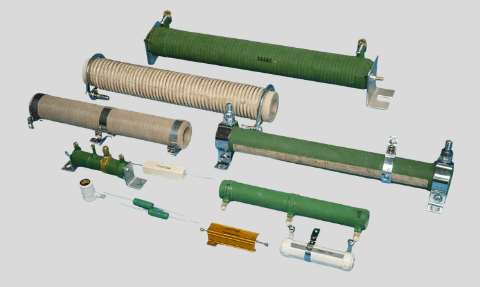

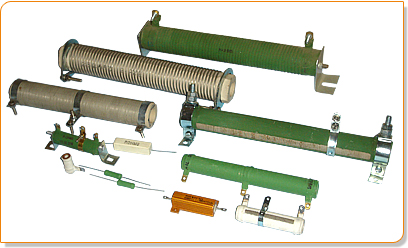

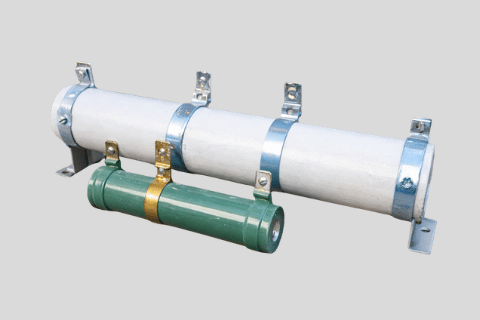

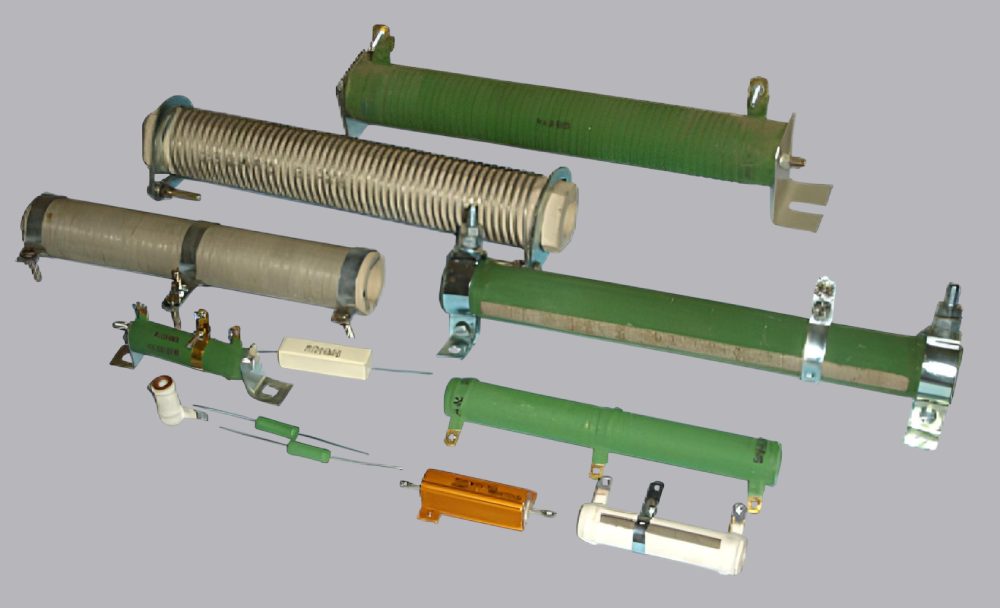

‘ROHMS’ WIRE WOUND TUBULAR SILICON COATED RESISTORS
|
Features
|
Spot Welded Joints for reliability, Low temperature co-efficient, Low Surface temperature, Brackets available for Horizontal as well as vertical mountings, Exceptional Stability & Performance.
|
|---|---|
|
Specification
|
Ohmic Range 0.01 to 500K ohms. Tolerance ± 0.5%, 1%, 5% and 10%, Power Rating 0.5 W to 5000 W.
|
|
Wire & Winding
|
Highest grade Nickel-chrome and copper Nickel Alloy wires are used Mechanically uniform, tension and required spacing. Single, Double Multiple Grade and Non-Inductive.
|
|
Type of Resistors
|
Tubular Resistors, Edge Wound Resistors, Non-Inductive Resistors, Ceramic Encased, Fibre Card Resistors, Mica Resistors, Mat Resistors.
|
|
Rating Continuous Duty
|
The rating given for each type of Resistor are based on a continuous duty service in free air and should be regarded as value for a single resistor mounted vertically in these conditions there will be a temperature rise of 300oC for Vitreous enameled and 200oC for silicon coated resistors.
|
“Rohms” Precision Wire Wound Resistors, Motor Starting Resistors, Potentiometers, Rheostats, Dynamic Braking Resistors, Aluminum Housing Resistors, Load Banks, and S. S. Grid Resistance.
